[Xen-users] Malfunctioning bridge

[<J.Witvliet@xxxxxxxxx>]

In order to create a -more or less- representative test configuration, I tried to copy a real life situation into a xen-set-up:

-external firewal

-openvpn server

-Internal firewall

-management gateway

-asterisk pabx

-mysql server



To simulate different networks, I created dummy ethernet devices, and connected bridges to it.

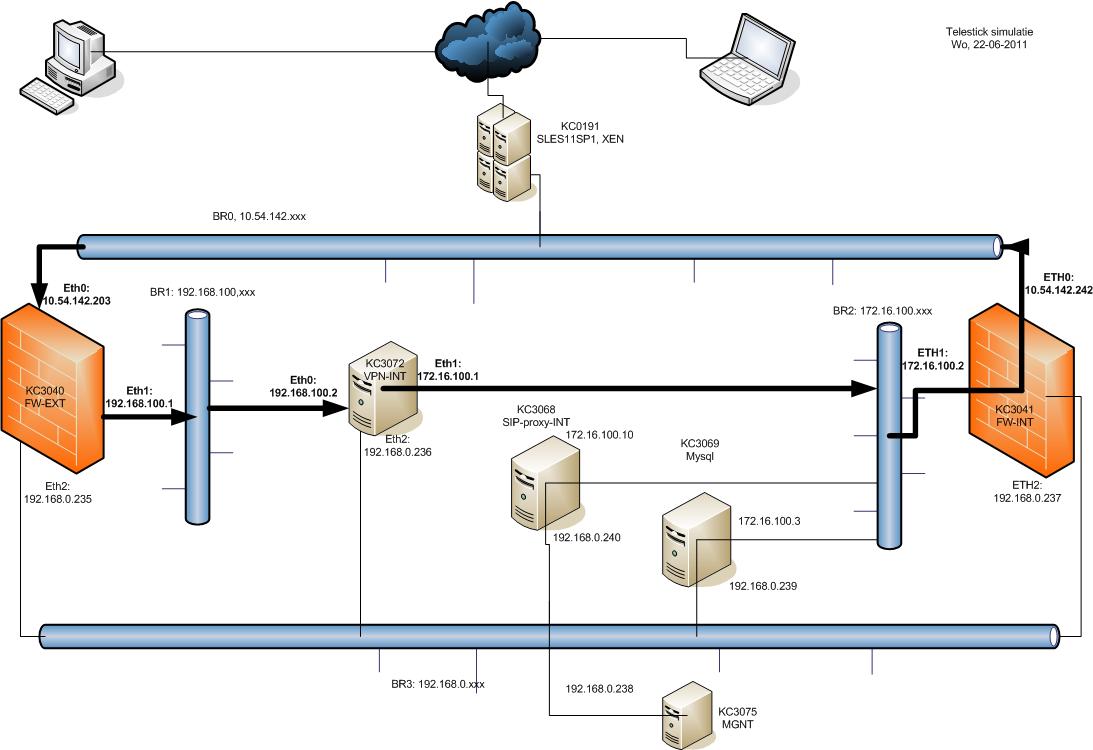

All of the bridges are working OK, except ONE: BR2 (for setup, see attachement)



If i ping on the vpn-box (vpn is not setup yet) towards internal firewall or otherway round i see no traffic at all

( 172.16.100.1 => 172.16.100.2 OR 172.16.100.2 => 172.16.100.1)



Looked at [internal] firewall, at the bridges, routing, but i'm clue-less….

Test i've done sofar:



Any suggestion where to look next?



Kind regards, Hans





---
