[Xen-users] Impressive Performance Problems with Small-Files /Small Bloc

To: Xen List <xen-users@xxxxxxxxxxxxxxxxxxx>
Subject: [Xen-users] Impressive Performance Problems with Small-Files /Small Blocksizes
From: "Balg, Andreas" <a.balg@xxxxxxxx>
Date: Fri, 6 Aug 2010 14:06:08 +0200
Delivery-date: Fri, 06 Aug 2010 05:08:00 -0700
Envelope-to: www-data@xxxxxxxxxxxxxxxxxxx
List-help: <mailto:xen-users-request@lists.xensource.com?subject=help>
List-id: Xen user discussion <xen-users.lists.xensource.com>
List-post: <mailto:xen-users@lists.xensource.com>
List-subscribe: <http://lists.xensource.com/mailman/listinfo/xen-users>, <mailto:xen-users-request@lists.xensource.com?subject=subscribe>
List-unsubscribe: <http://lists.xensource.com/mailman/listinfo/xen-users>, <mailto:xen-users-request@lists.xensource.com?subject=unsubscribe>
Sender: xen-users-bounces@xxxxxxxxxxxxxxxxxxx
hello everybody,

during some extensive benchmarking for an evaluation we found some issues with
i/o-performance and also memory bandwidth of Xen 3.4.2 (using XCP-0.5) running
on a quite up-to-date and performant Dell-R610 Server (2 x Xeon E5620, 16G RAM,
4 x SATA 15K HDD's - RAID 5):

- Especially for small block sizes (below 32k) the I/O is very poor.

to give some figures:  The same Benchmark
 "time iozone -az -i0 -i1 -i2 -i8 -Rb results.xls"

Runs around 3 Minutes on the bare Hardware, around 30 Minutes in a KVM-VM

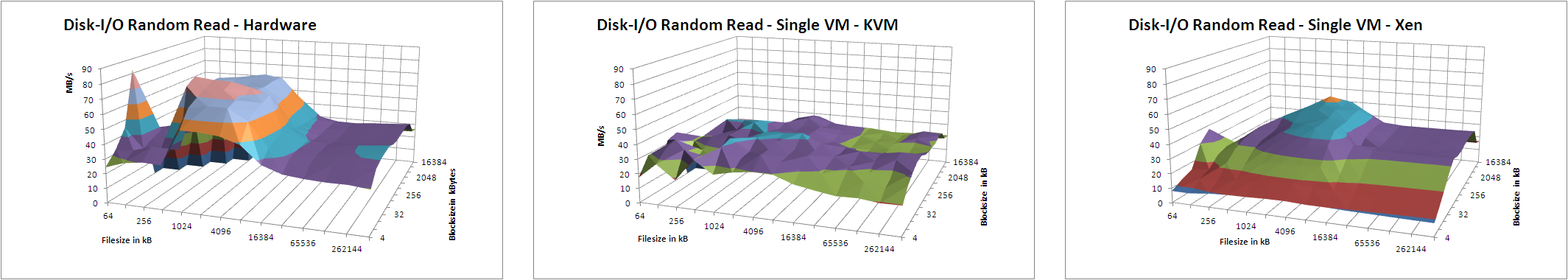

and more than 1 hour(!) in a xen VM - See attached graphs and focus on the
front of the diagram (red and blue "foot" of the xen graph)

What I'd like to know is, if this is be a glitch in a device driver, an error
in our configuration or might be eliminated in any other way using a workaround
or other version.

Or is this a proble of the differences in Design or just nobody noticed it so
far and it should be lokked at by the developers. Without these two significant
problems Xen would outperform kvm in almost any possible manner ....


Best regards
Andreas



--
-----------------------------------------------------------------------------
XiNCS GmbH              MwST-Nr: 695 740
Schmidshaus 118         HR-Nr:   CH-300.4.015.621-9
CH-9064 Hundwil AR

Webseite:       http://www.xincs.eu
AGB:            http://www.xincs.eu/agb.html
Tel.            +41 (0)31 526 50 95
-----------------------------------------------------------------------------

Attachment: Disk-IO.png
Description: PNG image

Attachment: RAM-Bandwidth.png
Description: PNG image

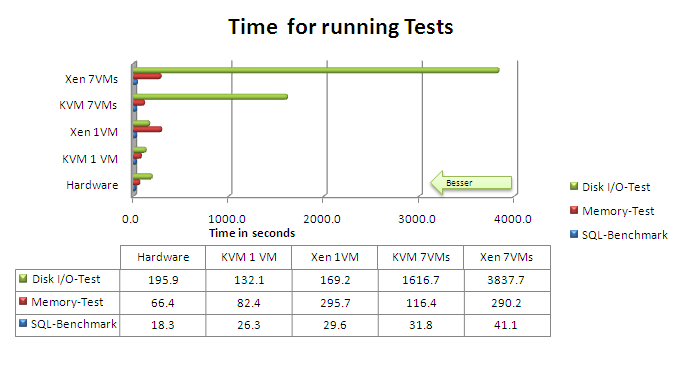

Attachment: Time-graph.png
Description: PNG image
