Re: [Xen-devel] IOMMU and AMD 890fx

To: Jens Krehbiel-Gräther <xen@xxxxxxxxxxxxxxxxxx>
Subject: Re: [Xen-devel] IOMMU and AMD 890fx
From: Sander Eikelenboom <linux@xxxxxxxxxxxxxx>
Date: Wed, 7 Jul 2010 20:28:15 +0200
Cc: Andre Przywara <andre.przywara@xxxxxxx>, "xen-devel@xxxxxxxxxxxxxxxxxxx" <xen-devel@xxxxxxxxxxxxxxxxxxx>, Leonardo Prosperi <leo.prosperi@xxxxxxxxx>, Joerg Roedel <joro@xxxxxxxxxx>, "Huang2, Wei" <Wei.Huang2@xxxxxxx>, Joop Boonen <joop_boonen@xxxxxx>, Andrew Oakley <andrew@xxxxxxxxxxxxxxxxx>
Delivery-date: Wed, 07 Jul 2010 11:29:27 -0700
Envelope-to: www-data@xxxxxxxxxxxxxxxxxxx
In-reply-to: <4C3458F0.8040906@xxxxxxxxxxxxxxxxxx>
List-help: <mailto:xen-devel-request@lists.xensource.com?subject=help>
List-id: Xen developer discussion <xen-devel.lists.xensource.com>
List-post: <mailto:xen-devel@lists.xensource.com>
List-subscribe: <http://lists.xensource.com/mailman/listinfo/xen-devel>, <mailto:xen-devel-request@lists.xensource.com?subject=subscribe>
List-unsubscribe: <http://lists.xensource.com/mailman/listinfo/xen-devel>, <mailto:xen-devel-request@lists.xensource.com?subject=unsubscribe>
Organization: Eikelenboom IT services
References: <z2n56ae3d9b1005081631sf3c31fafsb24b018c70b11b1a@xxxxxxxxxxxxxx> <y2i56ae3d9b1005091101xd15a9bcbt2244a907745b26f9@xxxxxxxxxxxxxx> <3399D2269986104B959D31B7E919313C06E2BD8E@xxxxxxxxxxxxxxxxxxx> <4410545273.20100510083852@xxxxxxxxxxxxxx> <AANLkTikDGRtmZgT3DdOcdnyDTMr4TnAperaeTXcfB0cM@xxxxxxxxxxxxxx> <571239012.20100603101930@xxxxxxxxxxxxxx> <1857fd65263c9155e5f307f3b7e329d0.squirrel@xxxxxxxxxxxxxxx> <1807175740.20100603112310@xxxxxxxxxxxxxx> <ee4a6ab6f04c6a03ad99464f01b6dabc@xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx> <20100603112649.GG11162@xxxxxxxxxx> <4C079729.8030502@xxxxxxx> <20100610194947.17e0f6ad@ado-gentoo> <4C334398.2070407@xxxxxxxxxxxxxxxxx> <621064754.20100707094716@xxxxxxxxxxxxxx> <4C3458F0.8040906@xxxxxxxxxxxxxxxxxx>
Sender: xen-devel-bounces@xxxxxxxxxxxxxxxxxxx
Hello Jens,

Hi All,

With a bios flash, biostar does also seem to support the IOMMU.
So it seems all 890fx mobos have a (beta) bios available to support the IOMMU !

Reply from biostar tech support:

Yes, this motherboard supports IOMMU with 89FAD629.BST BIOS. Enable IOMMU
function via BIOS. I have to attached a picture for you reference. Also, the
IVRS table will auto create when enable IOMMU function via BIOS.

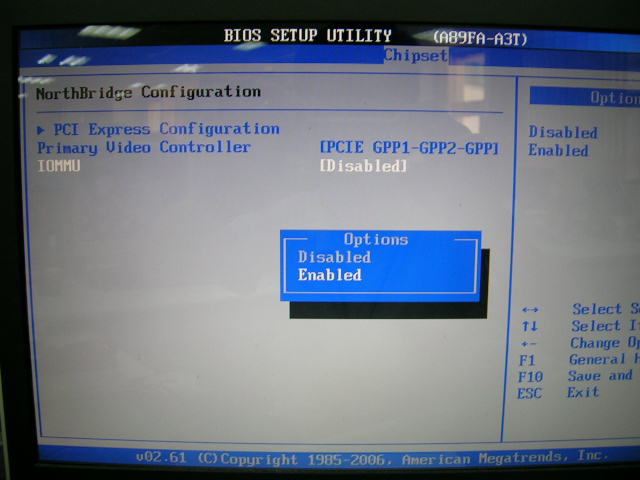

<< Enable IOMMU >>

=> Chipset / NorthBridge Configuration / IOMMU / Change from Disabled to
Enabled.

<< BIOS Download Link >>

=> http://www.biostar.com.tw/app/en/mb/bios.php?S_ID=482#


Wednesday, July 7, 2010, 12:37:36 PM, you wrote:

> Hi all!

> Asrock has released official 1.6 bios for the Asrock 890FX Deluxe3
> Board. There is iommu option in the bios, just flashed and checked. It
> works. So you can change the Wiki at

> http://wiki.xensource.com/xenwiki/VTdHowTo

> Asrock leaved beta status ;-)

> Jens


> Am 07.07.2010 09:47, schrieb Sander Eikelenboom:
>> Hi all,
>>
>> I have received a beta-bios from MSI for the MSI 890FXA-GD70 that should
>> support the IOMMU.
>> Since I don't have this board (yet), if there is anyone who has it and cares
>> to test, just drop an email and I can forward the bios.
>>
>> If it works, that would only leave Biostar not supporting it, and with
>> Asrock, Gigabyte and MSI now in beta.
>> --
>>
>> Sander
>>
>> Tuesday, July 6, 2010, 4:54:16 PM, you wrote:
>>
>>> On 10/06/10 19:49, Andrew Oakley wrote:
>>>> I have a Gigabyte GA-890FXA-UD5 motherboard.  I have opened a support
>>>> ticket with Gigabyte but have not yet received any reply.  The
>>>> virtualization option in the BIOS is turned on, there do not appear to
>>>> be any other relevant options.
>>>>
>>>> $ lspci -d 1002:5a23
>>>> $ ls /sys/firmware/acpi/tables/
>>>> APIC  DSDT  dynamic  FACP  FACS  HPET  MATS  MCFG  SSDT  TAMG
>>>>
>>>> If there is any response from Gigabyte to AMD can it be published on
>>>> the list please?
>>
>>> Good news everyone, Gigabyte have now implemented this feature, see
>>> http://forums.tweaktown.com/f69/ga-890fxa-ud5-iommu-bios-switch-39801/
>>
>>
>>
>>



--
Best regards,
 Sander                            mailto:linux@xxxxxxxxxxxxxx

Attachment: DSCN7637.jpg
Description: JPEG image
