[Xen-devel] Re: Workaround for the corrupted Intel X48 DMAR table

["Neo Jia" <neojia@xxxxxxxxx>]

Randy,

I just tried your patch, which is almost same as mine to ignore those incorrect RMRR entries.

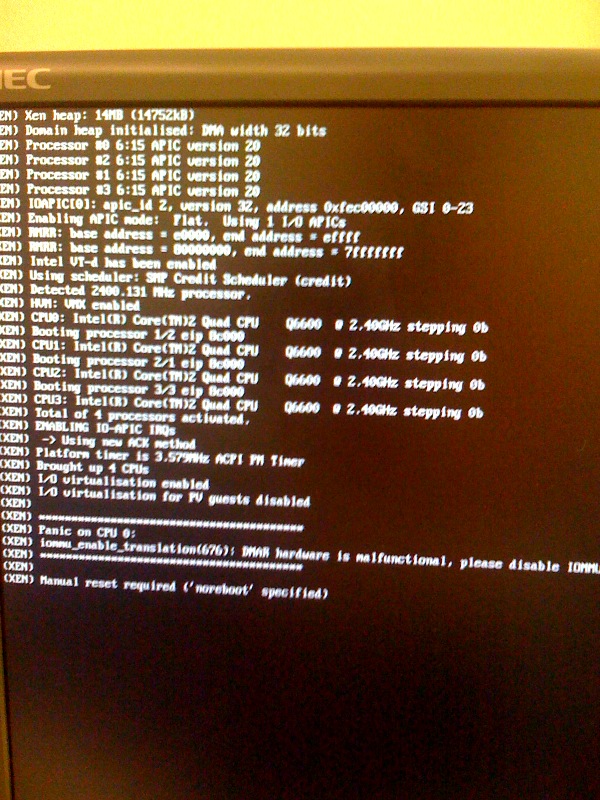

Here is the screenshot of the panic, as there is no onboard serial port.

Thanks,
Neo

On Mon, Jul 14, 2008 at 2:01 AM, Han, Weidong <weidong.han@xxxxxxxxx> wrote:

Neo,



Can you try attached patch? I guess you are using add-on graphics card, right?



Randy (weidong)

---

From: Han, Weidong
Sent: 2008年7月14日 16:00
To: 'Neo Jia'; 'xen-devel@xxxxxxxxxxxxxxxxxxx'
Cc: Zhao, Yu; 'Jean Guyader'
Subject: RE: Workaround for the corrupted Intel X48 DMAR table

It should be a BIOS bug.



Can you post your changes in "acpi_parse_one_rmrr" function and panic information?



Randy (Weidong)

---

From: Neo Jia [mailto:neojia@xxxxxxxxx]
Sent: 2008年7月14日 14:48

To: xen-devel@xxxxxxxxxxxxxxxxxxx

Cc: Han, Weidong; Zhao, Yu; Jean Guyader

Subject: Workaround for the corrupted Intel X48 DMAR table

hi,

I am trying the Xen unstable on X48 chipset these days but it failed due to an corrupted RMRR table in the ACPI. The following is the acpi dump of DMAR.

DMAR @ 0x7fef1000
  0000: 44 4d 41 52 20 01 00 00 01 d1 49 4e 54 45 4c 20  DMAR .....INTEL
  0010: 44 58 34 38 42 54 32 20 12 06 00 00 4d 53 46 54  DX48BT2 ....MSFT
  0020: 13 00 00 01 23 00 00 00 00 00 00 00 00 00 00 00  ....#...........
  0030: 00 00 18 00 00 00 00 00 00 00 b0 fe 00 00 00 00  ................
  0040: 01 08 00 00 00 00 1b 00 00 00 20 00 00 00 00 00  .......... .....
  0050: 00 10 b0 fe 00 00 00 00 01 08 00 00 00 00 02 00  ................
  0060: 01 08 00 00 00 00 02 01 00 00 28 00 00 00 00 00  ..........(.....
  0070: 00 20 b0 fe 00 00 00 00 01 08 00 00 00 00 03 00  . ..............
  0080: 01 08 00 00 00 00 03 02 01 08 00 00 00 00 03 03  ................
  0090: 00 00 10 00 01 00 00 00 00 30 b0 fe 00 00 00 00  .........0......
  00a0: 01 00 58 00 00 00 00 00 00 00 0e 00 00 00 00 00  ..X.............
  00b0: ff ff 0e 00 00 00 00 00 01 08 00 00 00 00 1d 00  ................
  00c0: 01 08 00 00 00 00 1d 01 01 08 00 00 00 00 1d 02  ................
  00d0: 01 08 00 00 00 00 1d 07 01 08 00 00 00 00 1a 00  ................
  00e0: 01 08 00 00 00 00 1a 01 01 08 00 00 00 00 1a 02  ................
  00f0: 01 08 00 00 00 00 1a 07 01 00 28 00 00 00 00 00  ..........(.....
  0100: 00 00 00 80 00 00 00 00 ff ff ff 7f 00 00 00 00  ................
  0110: 01 08 00 00 00 00 02 00 01 08 00 00 00 00 02 01  ................

In line: 0100: 00 00 00 80 00 00 00 00 ff ff ff 7f 00 00 00 00, the RMRR reserved memory region starting address is even higher than its limit address.

Is there anyway to do a software workaround for this issue? I tried to simply ignore that entry in the "acpi_parse_one_rmrr" function, but I hit a panic in function "iommu_enable_translation".

Thanks,
Neo
--
